Latex washing and drying integrated machine series

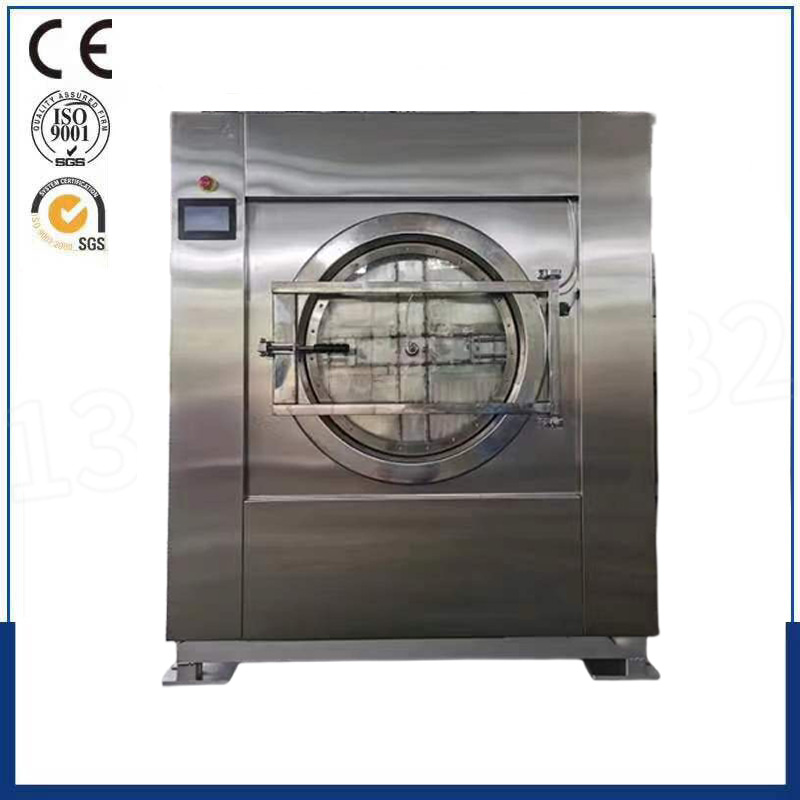

XTQ-100 latex washing and drying integrated machine

  • XTQ-100 latex washing and drying integrated machine
  • XTQ-130 latex washing and drying integrated machine

一、 Main Parameter for Washing Extracting Drying Machine



Type

XTQ-100

XTQ-130

 rated capacity

Min

kg

70

90

Max

kg

100

130

Drum

Diameter

mm

1470

1470

Diameter deepness

mm

880

1160


Hight

mm

2750

2750

Length

mm

1700

1700

Width

mm

2050

2330

Drum speed

Washing rotate speed

r/min

31

31


Steam Pressure

Mpa

0.4-0.6

0.4-0.6


Pump

kw

0.37

0.37


Fan Motor

kw

2.2

2.2

Motor

kw

11

15


Inverter

kw

18 kw-3 kw

22 kw-3 kw

Draining valve

mm

DN100*2

DN100*2


Dry Steam Pipe



DN40

DN40

Water Inlet Valve


Wind Exhaust Pipe



DN250

DN250

Cold water pipe



3/2""

3/2"

Steam pipe



1"

1"

Power supply



Standard:380+N-3PH-50HZ


2、 Product Introduction

   Product Introduction: The latex washing and drying integrated machine has a fully computerized LCD human-machine dialogue operation interface, a large Chinese display screen, and 30 different washing programs to choose from. It can meet any washing and drying requirements, fully realizing the automation of washing, bleaching, jigging, drying and other processes. It can be safely placed on any floor without the need for a foundation. The fully automatic washing and drying integrated machine adopts a frequency conversion system, which is easy to adjust speed, stable to start with low noise, obvious energy-saving effect, and simple and reliable transmission structure. The latex washing and drying integrated machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of 304 stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care. This series of models has options for steam heating, electric heating, and natural gas heating.
